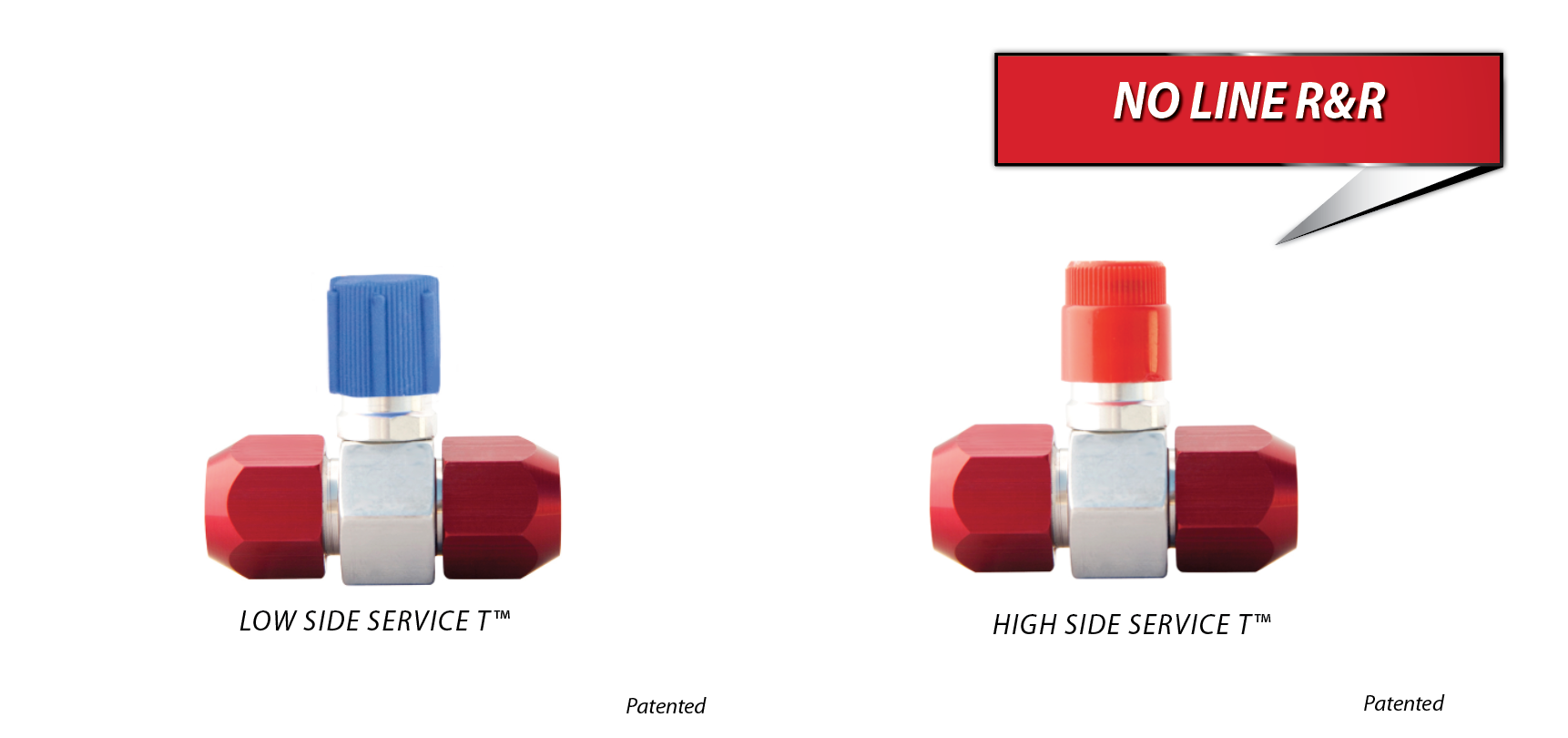

SMART SPLICE™ INLINE SERVICE PORT T

OE-APPROVED

Replace Defective or Hard-to-Reach Service Ports Quick and Profitable Port Repair Keeps You and Your Customer Happy

PROBLEM:

Need to repair or relocate a damaged or inaccessible A/C service port.


SOLUTION:
The Smart Splice™ Inline Service Port “T” from AirSept is quick, reliable, and profitable.

  • Durable, leak-proof repair
  • Installs in minutes
  • No welding or brazing required
  • Also available in Tray Two of the Smart Splice Ultimate System


Based on the superior sealing technology of AirSept’s Smart Splice™ Line Splice


DESCRIPTION PART NO.
LOW SIDE INLINE SERVICE PORT T™ SINGLES
Line Splice Low Side Service “T”
for 1/2” OD line
76201
Line Splice Low Side Service “T”
for 3/8” OD line
76202
Line Splice Low Side Service “T”
for 5/8” OD line
76204
Line Splice Low Side Service “T”
for 10mm OD line
77210
Line Splice Low Side Service “T”
for 12mm OD line
77212
Line Splice Low Side Service “T”
for 15mm OD line
77215
Line Splice Low Side Service “T”
for 16mm OD line
77216
DESCRIPTION PART NO.
HIGH SIDE INLINE SERVICE PORT T™ SINGLES
Line Splice High Side Service “T”
for 5/16” OD line
76212
Line Splice High Side Service “T”
for 3/8” OD line
76213
Line Splice High Side Service “T”
for 1/2” OD line
76214
Line Splice High Side Service “T”
for 10mm OD line
77220
Line Splice High Side Service “T”
for 12mm OD line
77222
Line Splice High Side Service “T”
for 8mm OD line
77228
